Basic Info

Model No.: 2BMF-12

Power Source: Tractor

Mechanization: Automatic Planting Machine

Ditching Mode: Continuous Ditching

Sowing: Precision Seeder

Certification: CE, ISO9001:2008, SGS, GMP, QS, UL

Condition: New

Name: Seed Drill

Function: Fertilizing , Seeder

Keyword: Seeder

Working Efficiency: High Efficiency

Row Spacing: 25/30 Cm

MOQ: 1sets

Packing: Iron Cage

Advantage: High Performance

Feature: Multi-functional

Working Width: 192~256 Cm

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

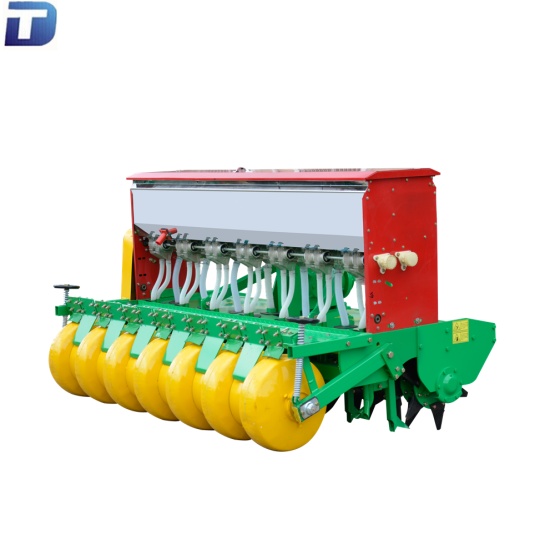

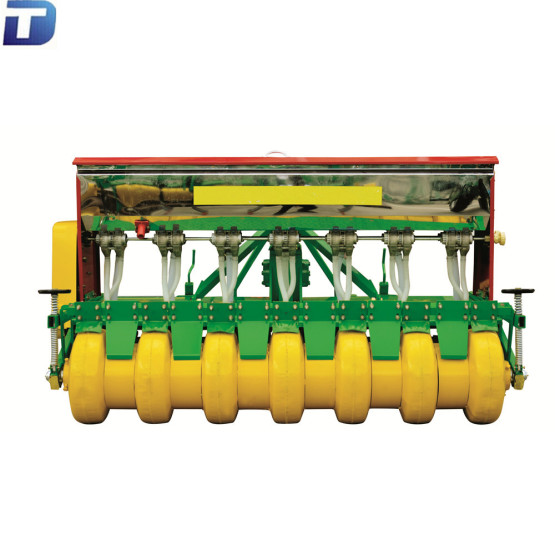

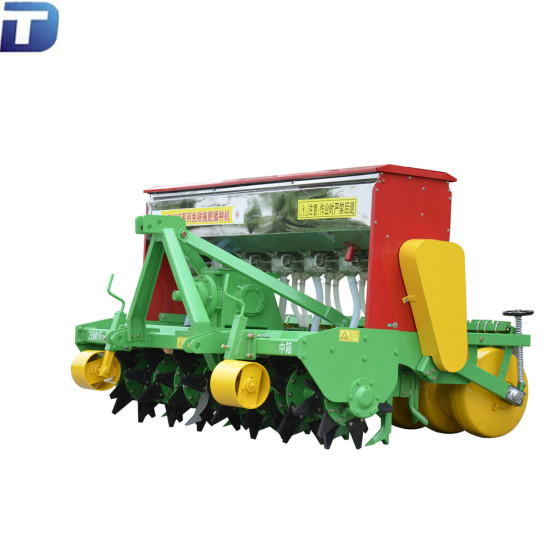

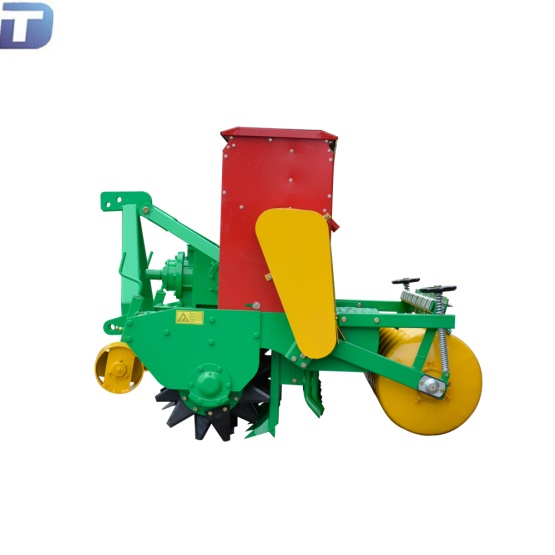

No tillage seed drill planter:

Tractor mounted zero tillage fertilizing planter is driven by tractor PTO, adopt to triangular knife roller cutting stubble parts, which can partly hack soil  on the straw residue ground. The roller is driven by chain transmission rows of fat axis to realize sowing and fertilizing. Seed opener use the size row layout. The seeder machine have a good  features that are the whole machine good rigidity,  left-right symmetric, which is suitable for the no-tillage planting of wheat with straw residue ground.

Parameters of no tillage seed drill planter:

1. Model: 2BMF-12

2. Dimension: 1755X2125X1400 mm

3. Weight: 885 kg

4. Matched Tractor: 90~120 hp

5. Working width: 190 cm

6. Planting rows/fertilizing rows: 12/6

7. Row spacing: 10~32 mm

8. Working depth: 0~40 mm

9. Fertilizing depth: 100~120 mm

10. Stubble cleaning part type: triangular knife 72 pcs

11. Working speed: 3~5 km/h

12. Working efficiency: 0.27-0.67 hm2/h

Features of no tillage seed drill planter:

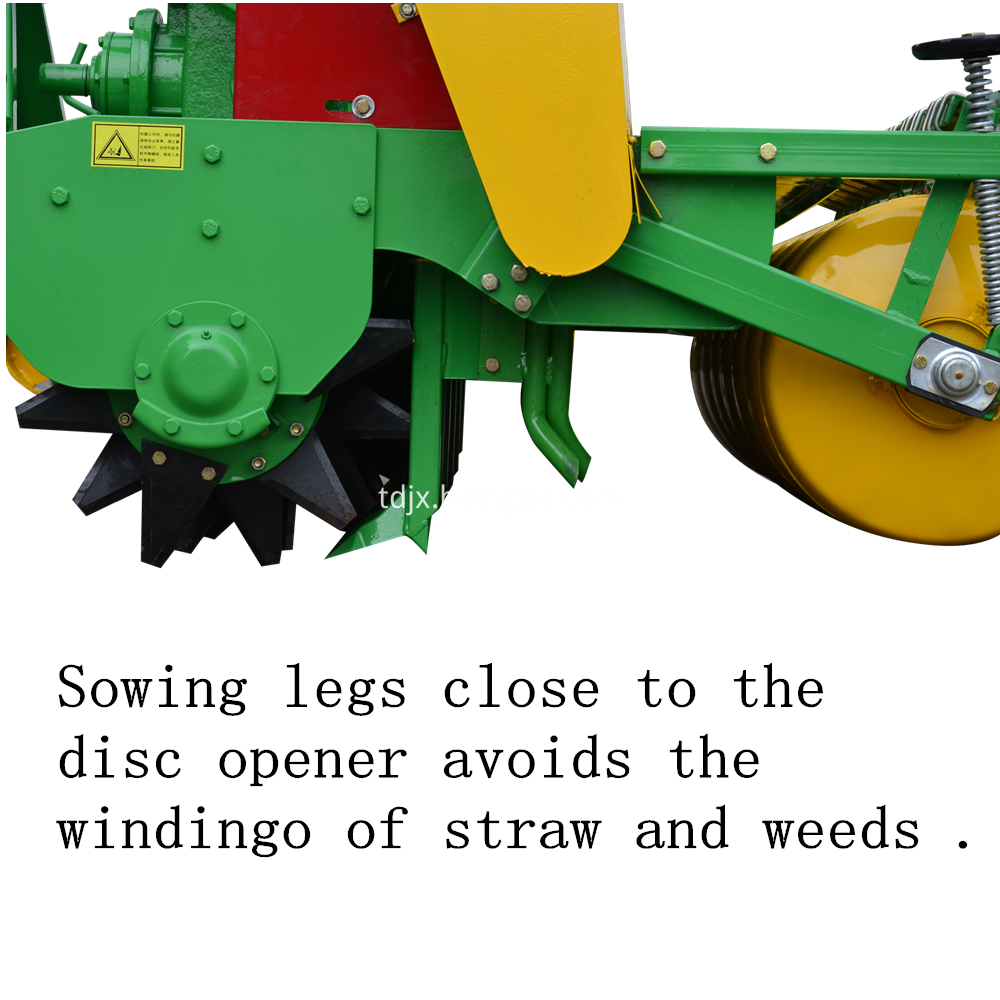

1* Sowing legs close to the disc opener avoids the windingo of the straw and weeds

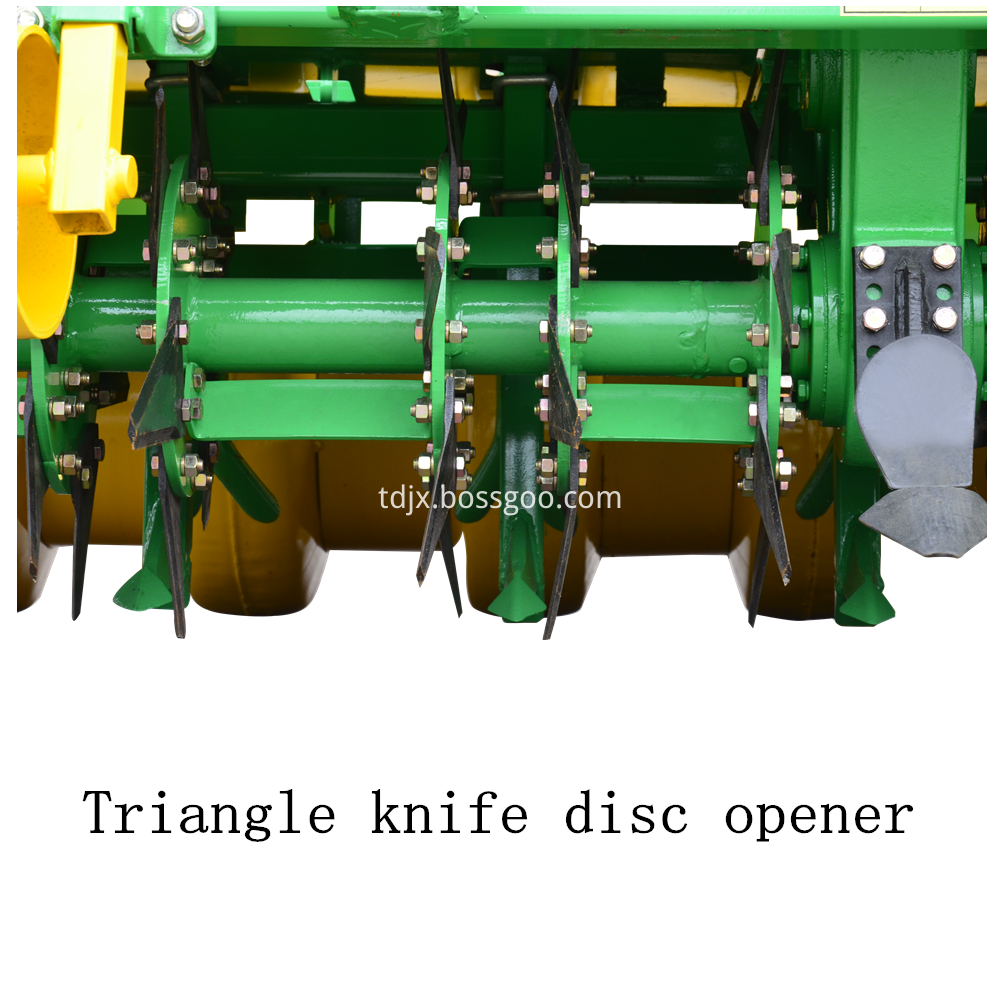

2* Taiangle knife disc opener

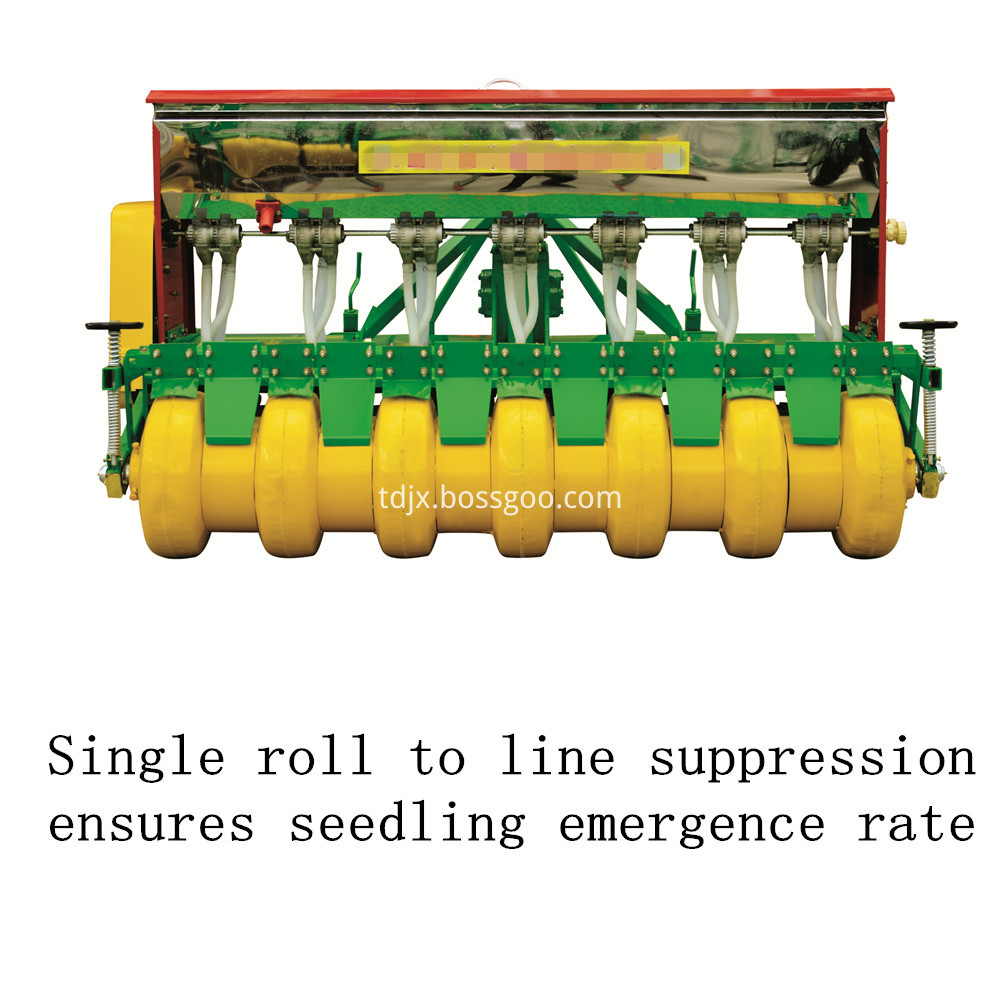

3* Single roll to line suppression ensures seeding emergence rate

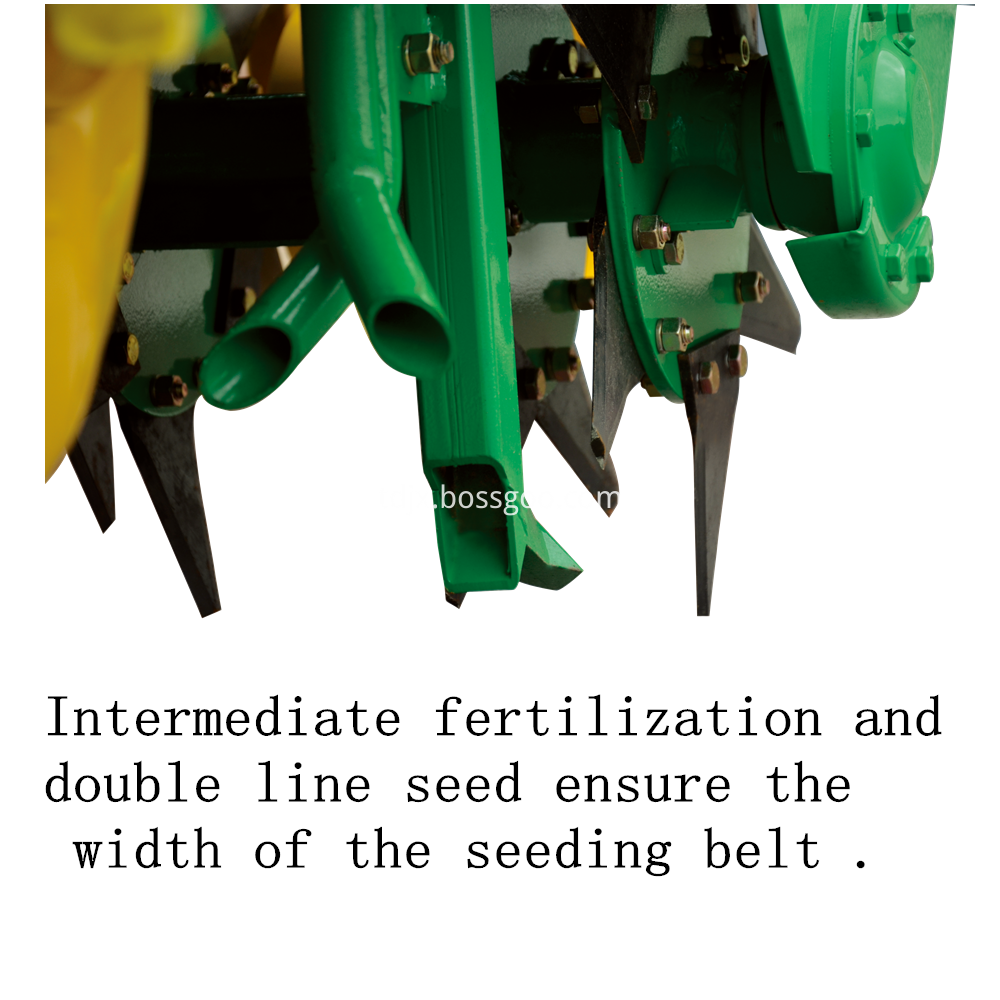

4* Intermediate fertilization and double line seed ensure the width of the seeding belt

Applications of no tillage seed drill planter:
