Basic Info

Model No.: 2BMF-14

Power Source: Tractor

Mechanization: Automatic Planting Machine

Ditching Mode: Continuous Ditching

Sowing: Precision Seeder

Certification: CE, ISO9001:2008, SGS, GMP, QS, UL

Condition: New

Name: Zero Till Seed Drill

Function: Fertilizing , Seeder

Keyword: Seeder

Working Efficiency: High Efficiency

Row Spacing: 25/30 Cm

MOQ: 1sets

Packing: Iron Cage

Advantage: High Performance

Feature: Multi-functional

Working Width: 192~256 Cm

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

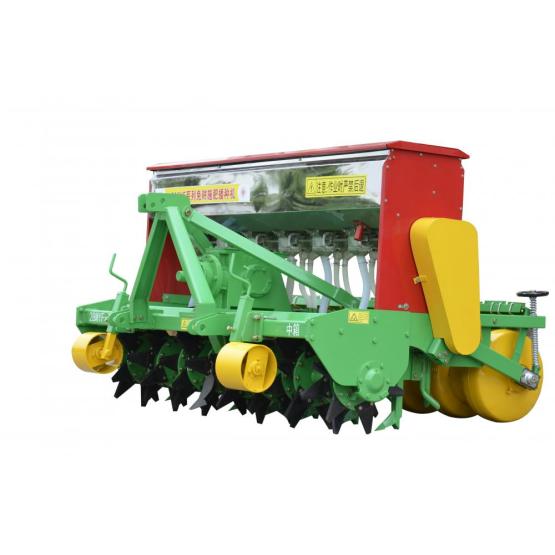

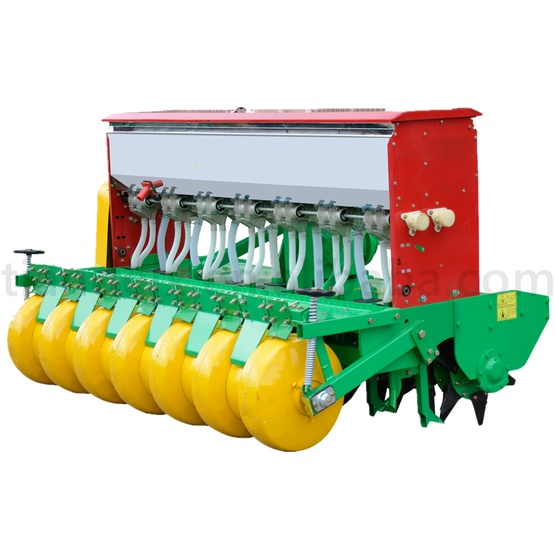

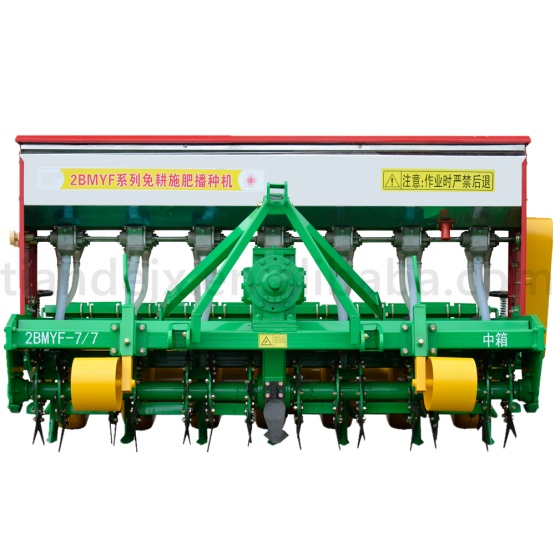

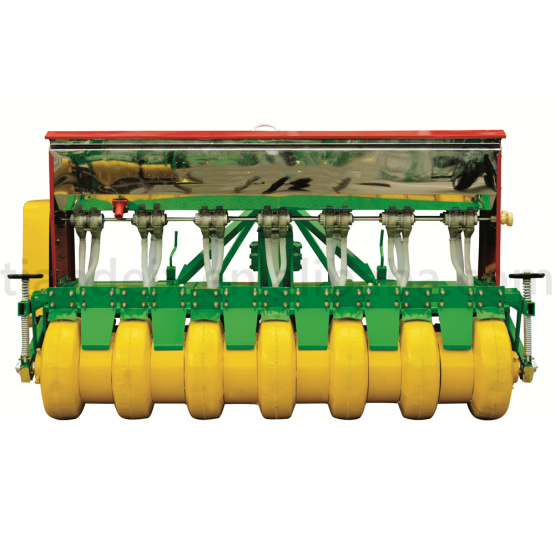

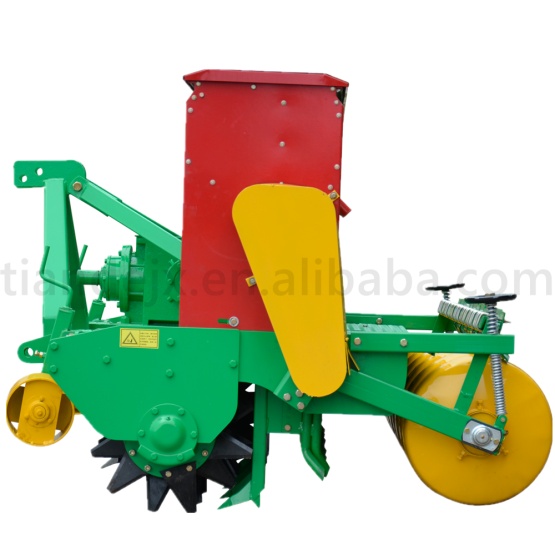

No till seed fertilizing drilling pasture seeder:

Tractor mounted no till seed fertilizing drilling pasture seeder is driven by tractor PTO, adopt to triangular knife roller cutting stubble parts, which can partly hack soil  on the straw residue ground. The roller is driven by chain transmission rows of fat axis to realize sowing and fertilizing. Seed opener use the size row layout. The zero tillage fertilizing planter seeder machine have a good  features that are the whole machine good rigidity,  left-right symmetric, which is suitable for the no-tillage planting of wheat with straw residue ground.

Parameters of no till seed fertilizing drilling pasture seeder:

1. Model: 2BMF-14

2. Dimension: 1755X2455X1400 mm

3. Weight: 925 kg

4. Matched Tractor: 100~130 hp

5. Working width: 220 cm

6. Planting rows/fertilizing rows: 14/7

7. Row spacing: 10~32 mm

8. Working depth: 0~40 mm

9. Fertilizing depth: 100~120 mm

10. Stubble cleaning part type: triangular knife 84 pcs

11. Working speed: 3~5 km/h

12. Working efficiency: 0.31-0.78 hm2/h

Features of no till seed fertilizing drilling pasture seeder:

1* Sowing legs close to the disc opener avoids the windingo of the straw and weeds

2* Taiangle knife disc opener

3* Single roll to line suppression ensures seeding emergence rate

4* Intermediate fertilization and double line seed ensure the width of the seeding belt
