Basic Info

Model No.: 1GQN-230

Type: Moldboard Plow

Application Field: Agriculture

Power Source: Tractor

Machinery Type: Arable Machinery

Traction Type: Hanging

Arbor Configuration: Horizontal Axis

Certification: SGS, ECE, EU, CE

Operation: Continuous Running Operation

Working Efficiency: High Efficiency

MOQ: 1sets

Packing: Iron Cage

Usage: Farm Cultivate

Color: Green

Application: Agricultural Cultivator

Advantage: Flexible Operation

Feature: Match Tractor

Name: Agricultural Equipment Rotavator

Key Word: Rotary Tiller

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

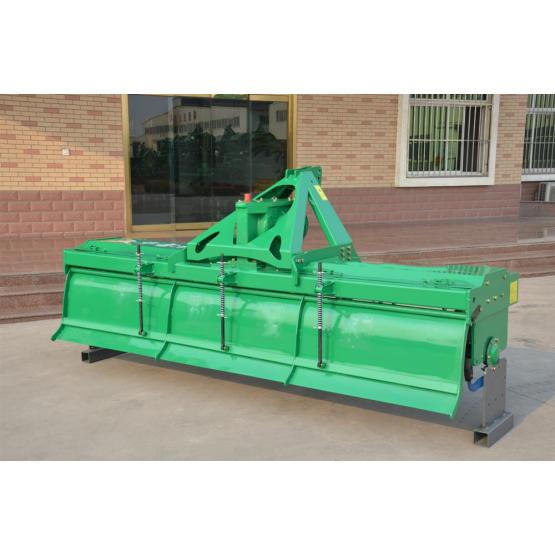

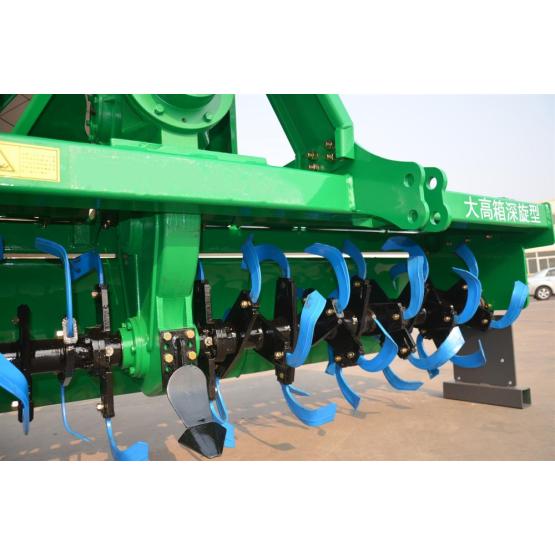

Farm tiller rotavator:

The large high box series rotary tiller is equipped with a large gearbox and a large modulus high-strength gear, which makes the TPO output of the tractor and the power input of the rotary tiller horizontal, which greatly prolongs the service life of the universal shaft. The new integrated suspension makes the whole machine more securely hooked, and the new bearing housing improves sealing performance. This series of models can be equipped with special deep-cultivating knives and extended rotary cultivators. Under effective conditions, the rotavator working depth is 35~40 cm, which is the ideal choice for your higher requirements for soil preparing.

Parameters of farm tiller rotavator:

1. Model: 1GQN-230

2. Dimension: 1275X2550X1180 mm

3. Weight: 560 kg

4. Matched Tractor: ≥90 hp

5. Working depth: 8~40 cm

6. Working width: 230 cm

7. Qty of rotary blade: 64/48

8. Gear speed ratio: 13/30  13/27  14/26  15/20  15/23

9. Linkage: Three-point mounted

Features of farm tiller rotavator:

1. Standard 3 point suspension is suitable for all kinds of power tractors.

2. Thickened ball iron gearbox. Use the new integrated suspension to make machine hang more firmly.

3. The rotavator can replaceable multi-form cutter shaft.

4. The gearbox has four holes in the front and rear, and adopt anti-receding bolt to fix.

5. The rotary tiller has new type bearing block and especial deep rotary blades.

6. Rotary tiller machines working deep : 30--40cm.

7. Enhance gearbox and inside with big modulus high strength gear, make tractors TPO output and the rotary cultivator in level state ,  greatly extend the service life of the universal drive shaft.

8. The rotary tiller can equip with special deep tillage knife shaft and lengthened rotary tillage knife .
