Basic Info

Model No.: 1LFT-430

Type: Moldboard Plow

Application Field: Agriculture

Power Source: Tractor

Machinery Type: Arable Machinery

Traction Type: Hanging

Arbor Configuration: Horizontal Axis

Certification: SGS, ECE, EU, CE

Operation: Continuous Running Operation

Working Efficiency: High Efficiency

MOQ: 1sets

Packing: Iron Cage

Name: Hydraulic Reversible Plough

Usage: Farm Cultivate

Color: Green

Application: Agricultural Cultivator

Structure Type: Mounted Plough

Advantage: Flexible Operation

Feature: Match Tractor

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

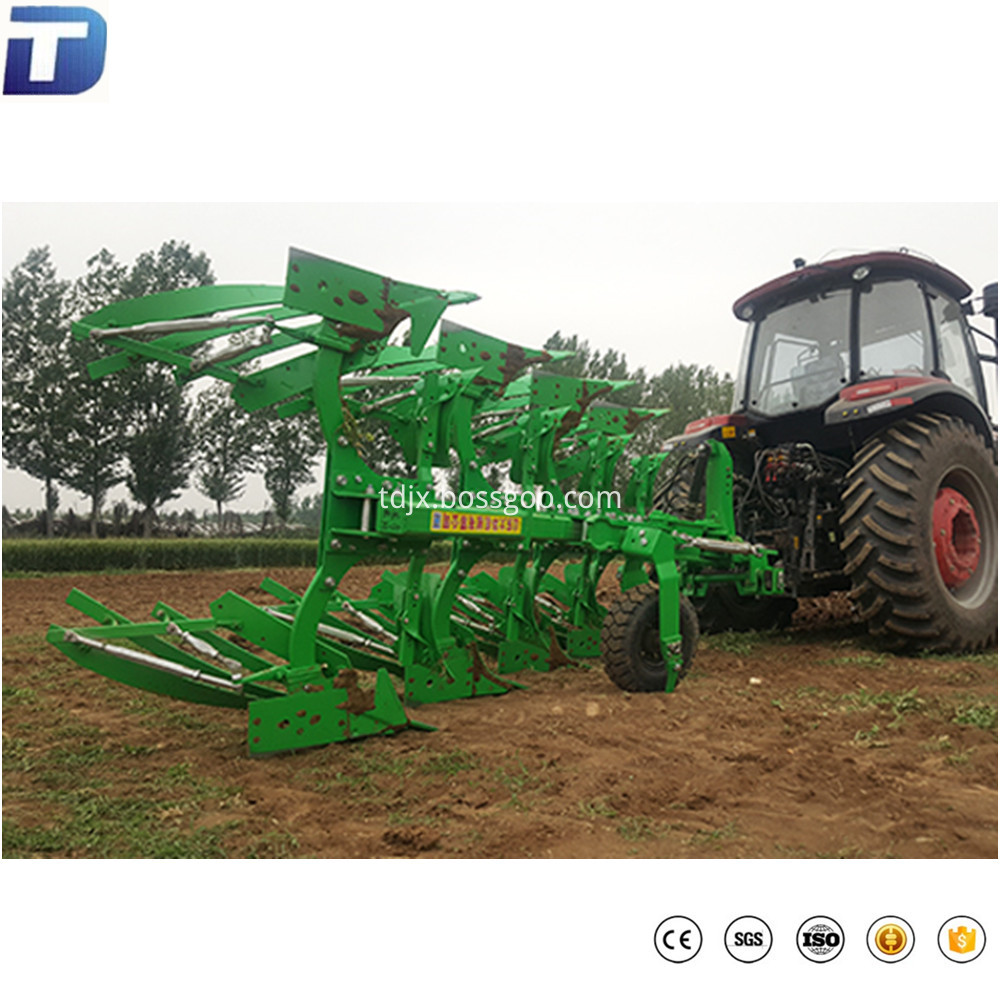

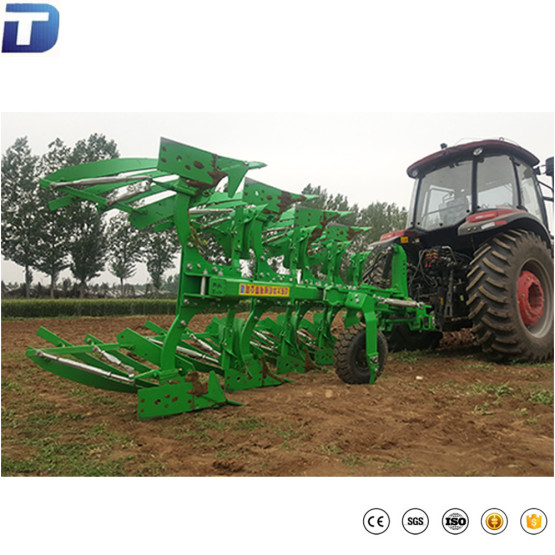

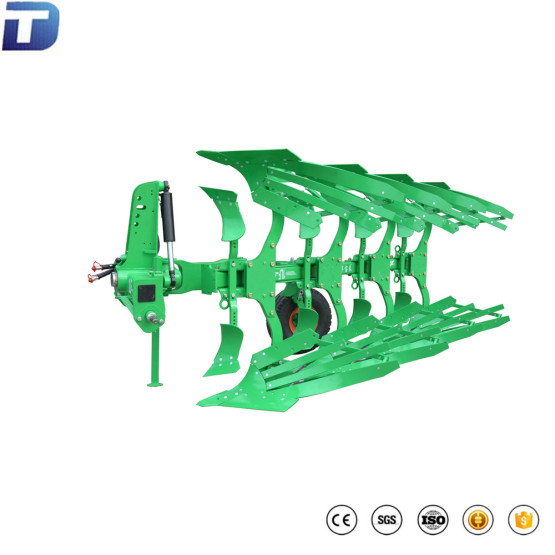

Hydraulic reversible plow:

Tractor mounted furrow reversible plough, reasonable structure , strong rigidity, high quality material, elegant appearance, double turn function with hydraulic oil cylinder, save time and fuel , high efficient . Equip with small complex plough , it can be used to cut field surface vegetation, which facilitates the straw and seeds by deep cover to fertile field, stable traction, well-cultivated, meet the requirements of agronomy and agricultural operation.

Parameters of hydraulic reversible plow:

1. Model: 1LFT-430

2. Dimension: 3510X1610X1760 mm

3. Weight: 1032 kg

4. Matched Tractor: 100~140 hp

5. Working depth: 25~35 cm

6. Structural type: bi-directional adjustable width plough

7. Plough body type: grid type

8. Plough Qty: 4×2

9. Plough body adjustable width scope: 200/250/300 mm

10. Working speed: 6~10 km/h

11. Working efficiency: 0.72-1.2 hm2/h

12. Linkage: Three-point mounted

Features of hydraulic reversible plow:

1. Pure imported materials of key parts, advanced heat treatment technology, ensure firmness and wear-resisting.

2. Unique grid structure can reduce fuel consumption and power, enhance turning effect and broken soil ratio.

3. Small complex plough is easy to disassemble and adjust, effect is better in wheat stubble field.

4.Through adjust traction line of plough and the width adjusting device (adjusting the internal and external screws) , it can realize working effect of turning smoothly and low-energy of reversible plough . The central regulating rod is easy to operate when adjusting plough working width, and can be adjusted to the ideal state quickly.

5. The depth roller can realize the function of limit working depth, keep working depth is consistent, and can be used as road wheel in transportation (some models have this function).

Applications of hydraulic reversible plow:
