Farm rotary plow with scraper mould board plough

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 5-15 Days

Basic Info


Model No.: 1LYQ-325

Type: Disc Plough

Application Field: Agriculture

Power Source: Tractor

Machinery Type: Arable Machinery

Traction Type: Hanging

Arbor Configuration: Horizontal Axis

Certification: SGS, ECE, EU, CE

Operation: Continuous Running Operation

Working Efficiency: High Efficiency

MOQ: 1sets

Packing: Iron Cage

Application: Agricultural Cultivator

Advantage: Flexible Operation

Feature: Match Tractor

Usage: Ploughing Soil

Color: Red

Drive Type: Match Tractor

Name: Disc Rotary Plough With Scraper


Additional Info


Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai


Product Description

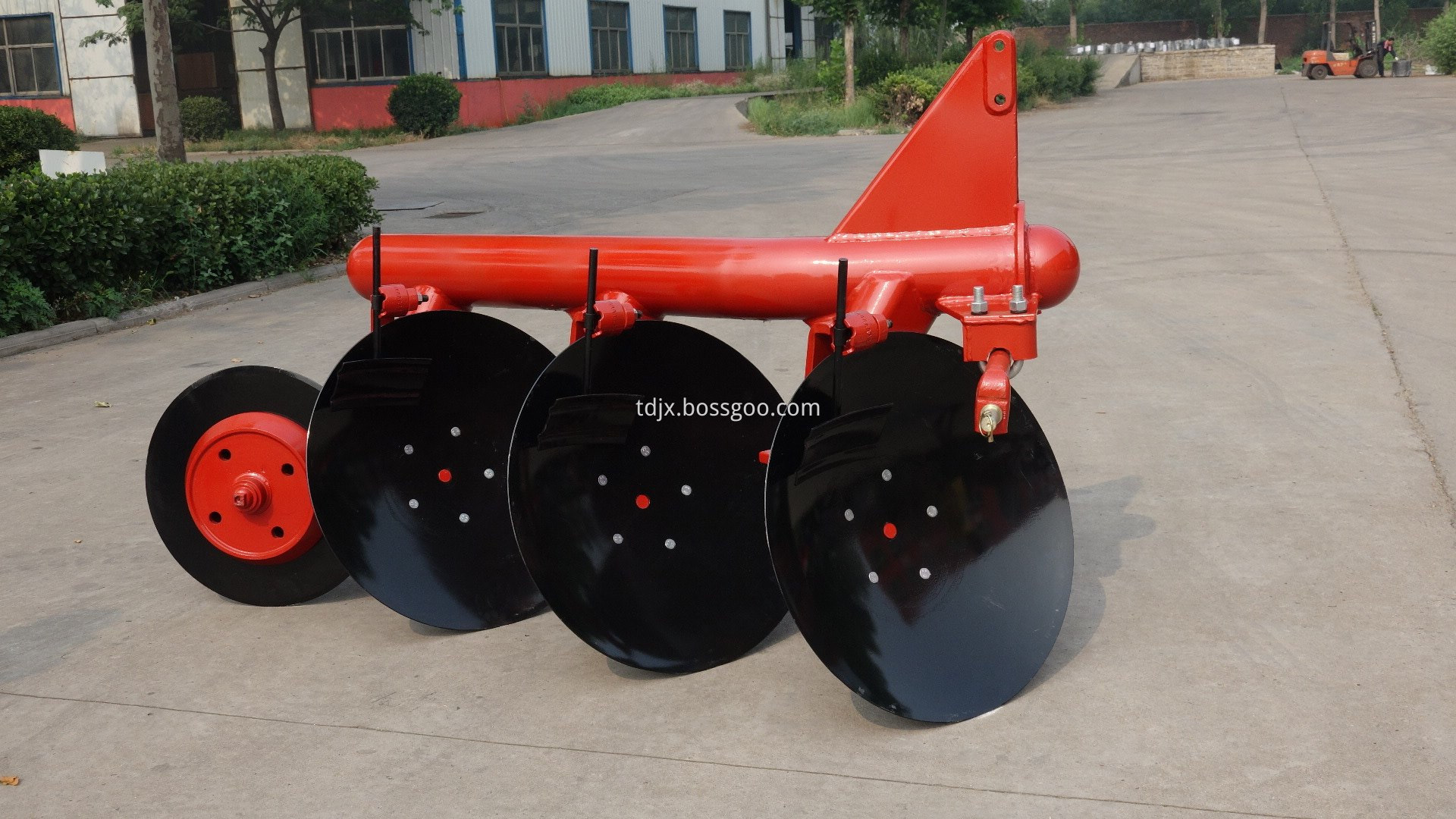

Farm land used disc plough with scraper:

Farm rotary plow with scraper mould board plough, reasonable structure, strong rigidity, high quality material, elegant appearance,  save time and fuel, high efficient. Equip with small complex plough, the rotary plough with scraper can be used to cut field surface vegetation, which facilitates the straw and seeds by deep cover to fertile field, stable traction, well-cultivated, meet the requirements of agronomy and agricultural operation.

This 1LY farm land used disc plough with scraper blade is mounted with four wheel tractor,as in conformity with the current agriculture conditions, are being produced with 2-3-4-5 rows.


Parameters of farm tractor disc plow:

1. Model: 1LYQ-325

2. Dimension: 1790X790X1100 mm

3. Weight: 460 kg

4. Matched Tractor: 50~80 hp

5. Working depth: 25 cm

6. Working width: 75 cm

7. No. of disc: 3

8. Linkage: Three-point mounted

9. Disc diameter: 660 mm


Features of farm tractor disc plow:

Disc Plough with Scraper blade



1. High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade.

2. This 1LY disc plough,disk plow,is mounted with four wheel tractor,as in conformity with the current agriculture conditions,are being produced with 2-3-4-5 rows.

3. The disc plough Matchable with tractor, it furrow soil when patches rotate, mainly applicable for complex land,such as weedy land, heavy soil, farmland with bricks and stones, etc.

4. Effectively avoid the plow disc is grass wrapped, not obstruction, can cut off stem of crop and overcome bricks and stones,with high efficiency,good quality work, easy to adjust, simple to use, durable, etc.

5. The disc ploughs are used to open the new fields and to process the stony areas.




Applications of farm tractor disc plow:
