Basic Info

Model No.: 1GQN-280

Type: Rotary Tiller

Application Field: Agriculture

Power Source: Tractor

Machinery Type: Soil Preparation Machinery

Drive Type: Gear Drive

Arbor Configuration: Horizontal Axis

Certification: SGS, ECE, EU, CE

Working Efficiency: High Efficiency

MOQ: 1sets

Packing: Iron Cage

Usage: Farm Cultivate

Color: Green

Application: Agricultural Cultivator

Advantage: Flexible Operation

Feature: Match Tractor

Name: Agricultural Equipment Rotavator

Key Word: Large-higher Gearbox Rotary Tiller

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

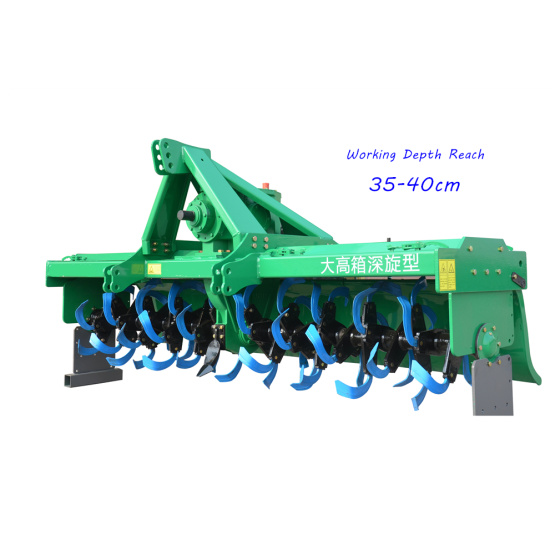

Farming tillage machine cultivator gearbox deep roravator

The farming tillage machine cultivator gearbox deep roravator is equipped with a large-higher size gearbox and a large modulus high-strength gear, which makes the PTO output of the tractor and the power input of the rotary tiller horizontal, which greatly prolongs the service life of the universal shaft. The new integrated suspension makes the whole machine more securely hooked, and the new bearing housing improves sealing performance. This series of cheap 3 point rotary tiller can be equipped with special deep-cultivating knives and extended rotary cultivators. Under effective conditions, the rotary cultivator for tiller working depth is 8~18 cm, which is the ideal choice for your higher requirements for soil preparing.

The large-higher size gearbox series tractor pto rotary tiller adopt large-higher size gearbox, five module gear transmission, matched with 120hp tractors, working width is 100-160cm, the machine is light and durable, it is the first choice for small farm land.

Parameters of farme tillage cultivator gearbox deep roravator:

1. Model: 1GQN-280

2. Dimension: 1275X2990X1180 mm

3. Weight: 650 kg

4. Matched Tractor: ≥120 hp

5. Working depth: 8~40 cm

6. Working width: 280 cm

7. Qty of rotary blade: 64/80

8. Gear speed ratio: 13/27  14/26  15/20  15/25

9. Linkage: Three-point mounted

Features of farme tillage cultivator gearbox deep roravator:

1. Standard 3 point suspension is suitable for all kinds of power tractors.

2. Thickened ball iron gearbox. Use the new integrated suspension to make machine hang more firmly.

3. The rotavator can replaceable multi-form cutter shaft.

4. The gearbox has four holes in the front and rear, and adopt anti-receding bolt to fix.

5. The rotary tiller has new type bearing block and especial deep rotary blades.

6. Rotary tiller machines working deep: 8--18cm.

7. Enhance gearbox and inside with big modulus high strength gear, make tractors PTO output and the rotary cultivator in level state,  greatly extend the service life of the universal drive shaft.

8. The rotary tiller can equip with special deep tillage knife shaft and lengthened rotary tillage knife .
