Basic Info

Model No.: 2BYF-6

Application Field: Agriculture

Function: Sowing, Cleaning-stubble ,fertilizing , Seeder

Power Source: Tractor

Mechanization: Automatic Planting Machine

Sowing: Precision Seeder

Certification: CE, ISO9001:2008, SGS, GMP, QS, UL

Condition: New

Keyword: Seeders

Working Efficiency: High Efficiency

MOQ: 1sets

Packing: Iron Cage

Advantage: High Performance

Feature: Multi-functional

Warranty: 12 Months

Name: Multifunction Precision Planter

Working Width: 1200~3200mm

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

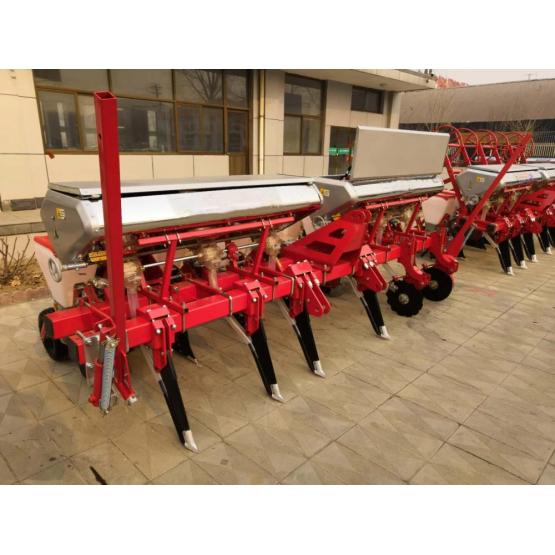

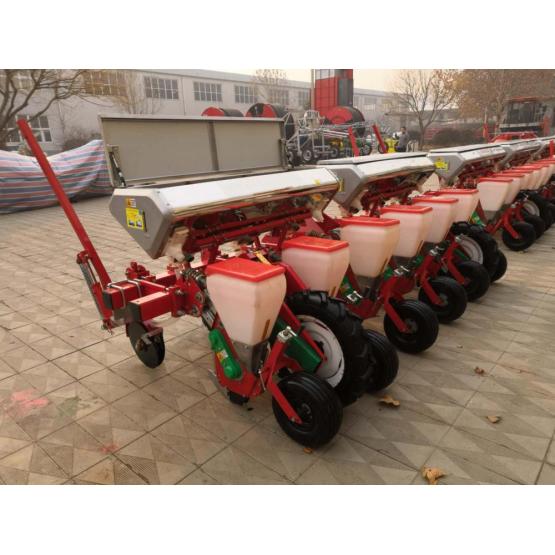

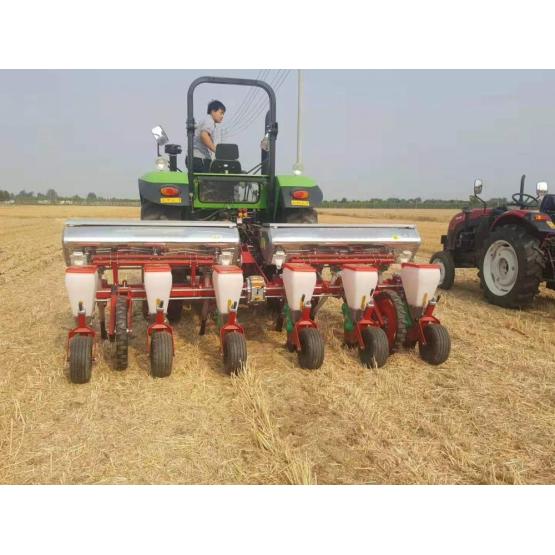

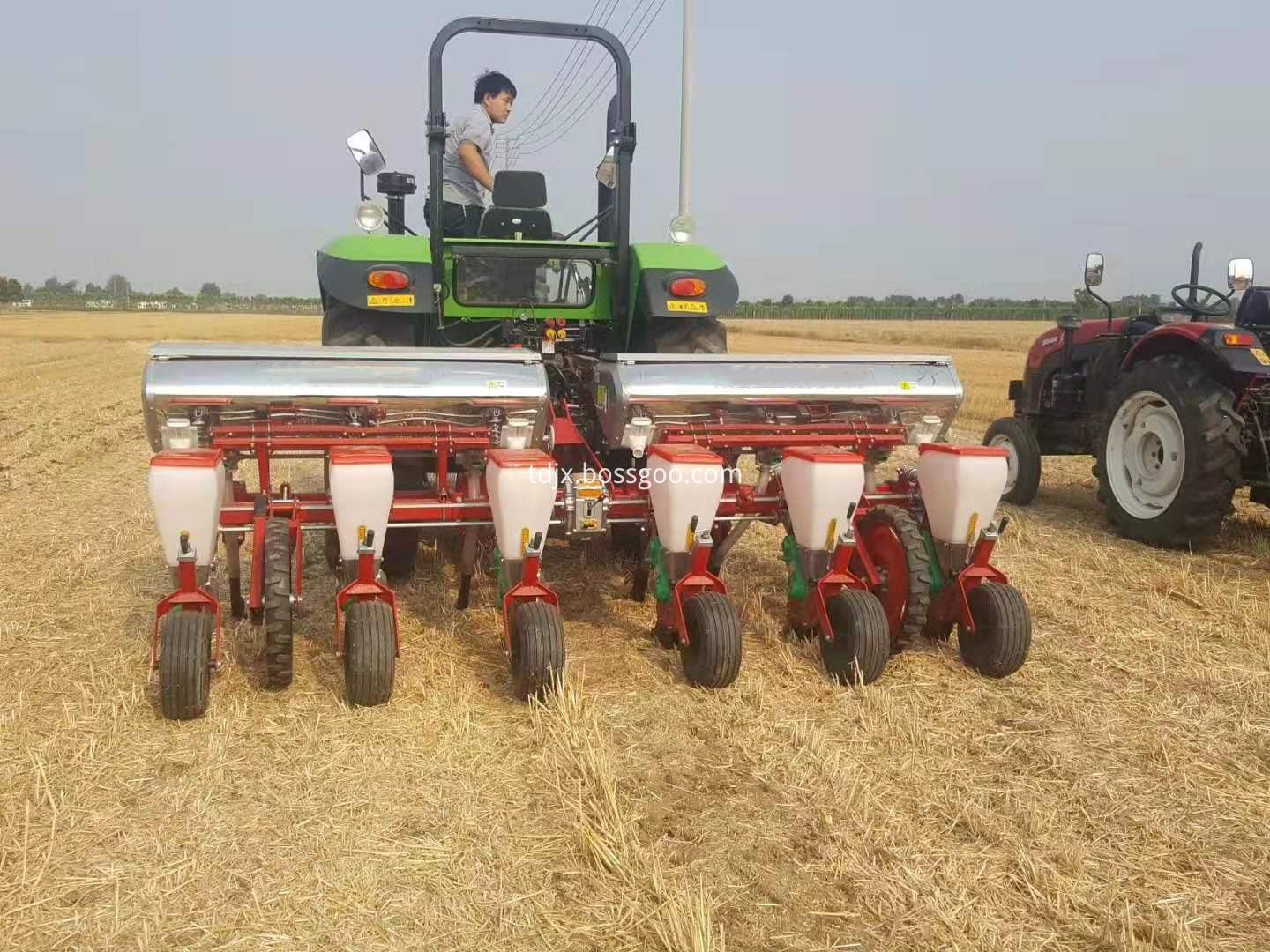

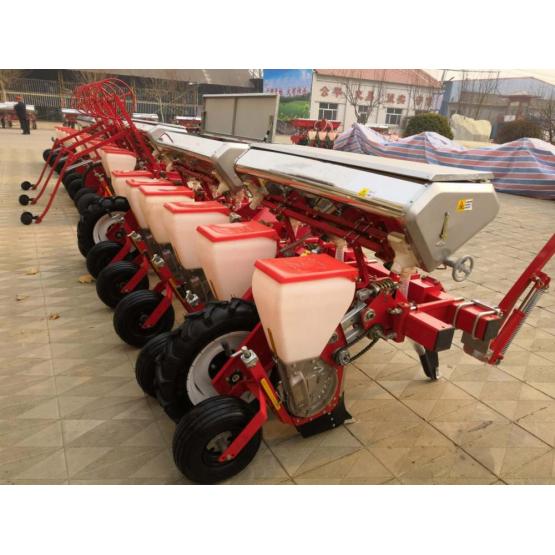

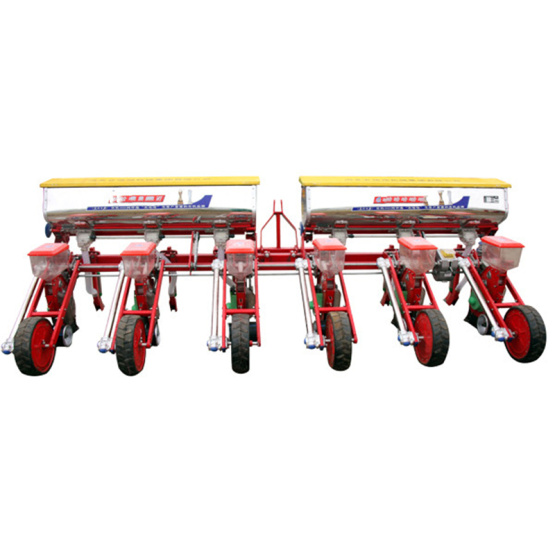

Multifunction precision 6 row seeder :

We supply multifunction precision 6 row seeder sowing machine is matched with tractor with more than 65 horsepower, one operation can complete stubble cleaning, fertilization, precision sowing and compaction and other processes.

The tractor 6 rows mechanical precision maize/corn planter machine adopt driving rotary type cleaning device, can effectively remove straw and stubble, which provide a good seedbeds for seeding and solve the problem of trench opener entanglement congestion.

The crop sowing mechanical planter with fertilizer equipped with finger-clip seed metering device to ensure sowing precision and efficient operation of the unit.

Parameters of multifunction precision 6 row seeder:

1. Model: 2BYF-6

2. Dimension: 1600X3300X1200 mm

3. Weight: 750 kg

4. Matched Tractor: 60~100 hp

5. Working width: 320 cm

6. Planting rows/fertilizing rows: 4/4

7. Row spacing: 40~60 cm

8. Seed metering device type: finger-clip type

Features of multifunction precision 6 row seeder:

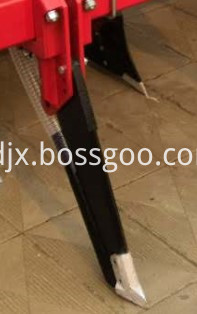

1 . The maize planter with fertilizer adopt vertical rotary blade to clear straw and stubble , which avoid soil moisture loss caused by soil disturbance .

2 . The maize seed planter using large mould side box transmission, high speed operation is more stable, large diameter cutter shaft cleaning effect is better .

3 . The sowing legs and pressing wheels are equipped with the latest independent copying mechanism, which is free to adjust and adapt to a variety of operating environments .

4 . The no-till seeder equipped with pinch-type precision seed metering device to improve the sowing precision, the operating speed can be 5~7 km/h when the operating conditions be allow.

Applications of multifunction precision 6 row seeder:
