Basic Info

Model No.: 1BJX-1.8

Type: Disc Plough

Application Field: Agriculture

Power Source: Tractor

Machinery Type: Arable Machinery

Traction Type: Hanging

Arbor Configuration: Horizontal Axis

Certification: SGS, ECE, EU, CE

Operation: Continuous Running Operation

Working Efficiency: High Efficiency

MOQ: 1sets

Packing: Iron Cage

Application: Agricultural Cultivator

Advantage: Flexible Operation

Feature: Match Tractor

Usage: Ploughing Soil

Drive Type: Match Tractor

Name: Light Duty Offset Disc Harrow

Color: Customized

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

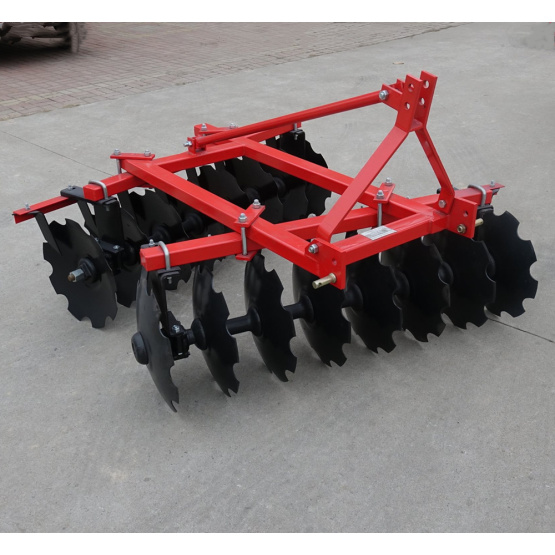

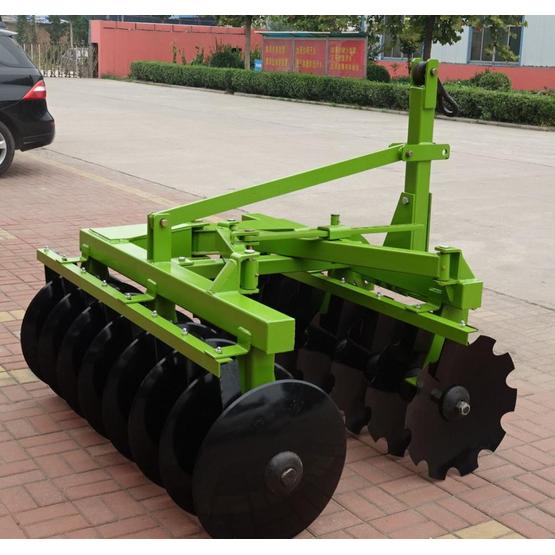

Farm tractor disc harrow:

Tractor mounted  light duty offset disc harrow is designed specially for small land with steep slopes that is difficult to harrow. The disc harrow is used for breaking up the ground, shattering soil lumps and mixing crop residues into soil as green manures. This harrow is mounted to tractor by 3 point linkage, the whole straucture is enough strong to perform excellently in steep land with high speed.

This series of disc harrow is completely mounted with tractor. During operation, the discs are rotating to turn the soil . It is suitable for operation on the land with grasses, straw and stems of crops or plants, big soil resistance with many stones and brickbat, etc. In the field, it is good at cutting the grass and straw, free from being stopped by the grass, soil or stones, etc.

Parameters of farm tractor disc harrow:

1. Model: 1BJX-1.8

2. Weight: 390 kg

3. Matched Tractor: 25~45 hp

4. Working depth: 14 cm

5. Working width: 180 cm

6. No. of disc: 16

7. Diameter of disc: 56 cm

8. Linkage: Three-point mounted

Features of farm tractor disc harrow:

1. Replace plough for soil ploughing on the cooked land.

2. Suitable for crop stubble before tillage, ground surface slabs, straw shredding and returning to the field, and breaking soil after tillage, leveling and preserving soil moisture.

3. Flat surface behind the target, loose soil, strong adaptability to heavy clay soil, wasteland and weeds.

4. High carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade.

5. Compact harrow structure, convenient for assembly and adjustment.

6. High harrowing speed and efficiency when three point mounted with tractor rear.

Applications of farm tractor disc harrow:
