Basic Info

Model No.: 1BQ-3.0

Application Field: Agriculture

Power Source: Tractor

Machinery Type: Arable Machinery

Traction Type: Hanging

Arbor Configuration: Horizontal Axis

Certification: SGS, ECE, EU, CE

Operation: Continuous Running Operation

Working Efficiency: High Efficiency

Packing: Iron Cage

Usage: Farm Cultivate

Advantage: Flexible Operation

Feature: Match Tractor

Color: Red

Application: Agricultural Rotary Harrow

Name: Tractor Rotary Power Harrow

Working Width: 300 Cm

Working Depth: 20~30 Cm

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

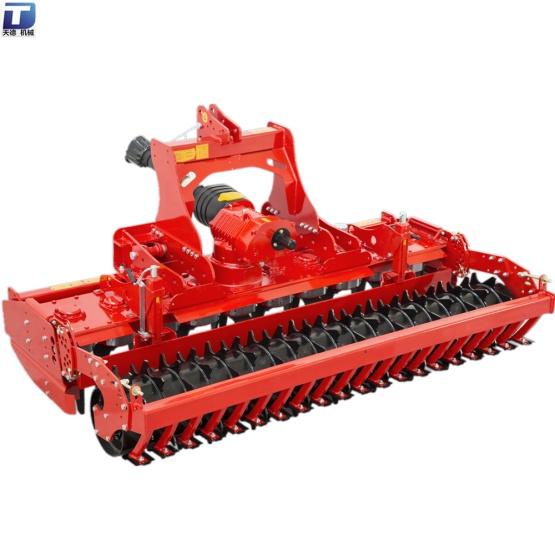

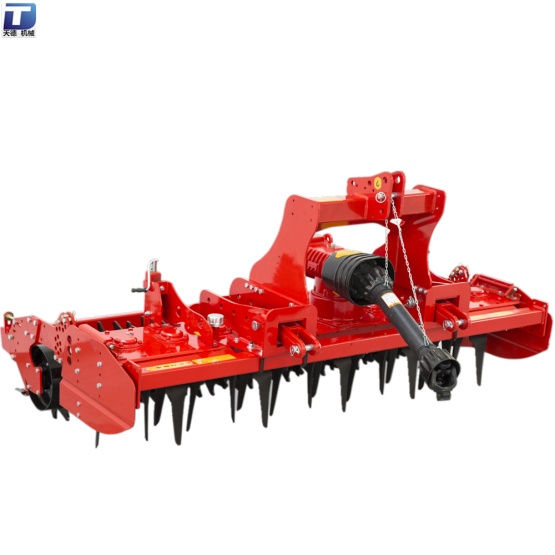

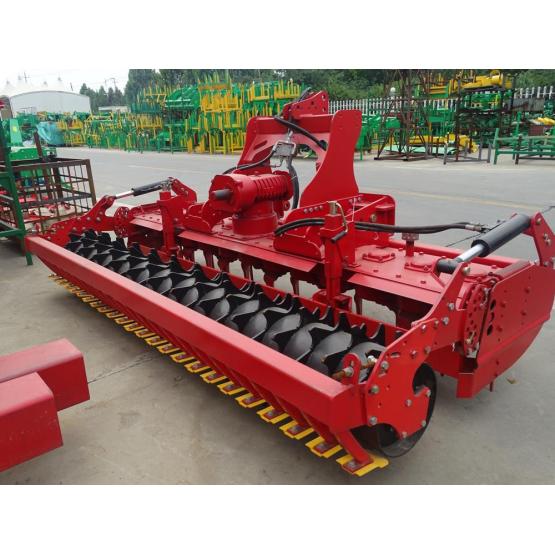

Tractor mounted rotary power harrow:

Tractor mounted power driven rotary harrow with spares output power through tractor pto shaft, forcefully drive working parts to work. Complete loose soil, broken soil, level and suppress land simultaneously. Which is a new type, new structure land preparing machine. Its feature are compact structure, high work efficiency, and strong adaptability etc. After work, plough layer isn`t disorderly, topsoil is finely-divided, flat and keep moisture, form good condition to realize precise planting.

The middle-duty and heavy-duty power harrow rotary to adapt different work condition, and meet demand of more different horsepower tractor. Also optional fast articulated device to match with different precise planting machine for combine working, so reduce farming time and save cost to improve work efficiency.

Parameters of rotary power harrow:

1. Model: 1BQ-3.0

2. Dimension: 1527X3190X1220 mm

3. Weight: 1300 kg

4. Matched Tractor: 130~170 hp

5. Working depth: 20~30 cm

6. Blades Qty: 8×2

7. Working width: 300 cm

8. Working efficiency: 1.7-2.5 hm2/h

9. Linkage: Three-point mounted

Features of rotary power harrow:

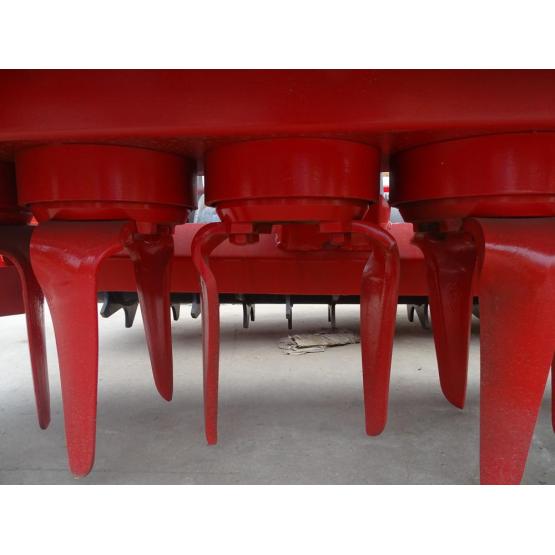

1. High strength war-resistant boron steel blade adapts to varies of soil property, and easy to replace.

2. Replaceable gear mechanism design to meet different post-power output speed selection.

3. Adjust work depth through hack roller side pin, can optional hydraulic parts for auxiliary adjustment.

4. Optional multiple hack rollers, adapt to different work condition and soil property.
