Basic Info

Model No.: 7CX-4.0

Working Efficiency: High Efficiency

MOQ: 1sets

Advantage: Flexible Operation

Drive Type: Match Tractor

Packing: Iron Frame Package

Feature: Higher Performace

Name: Farm Tipper Trailer

Application: Farm dump trailer

Color: Customized

Usage: Farm trailer For Transportation

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

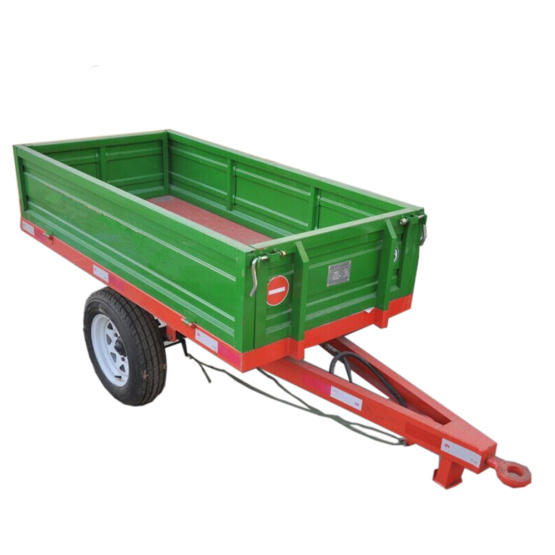

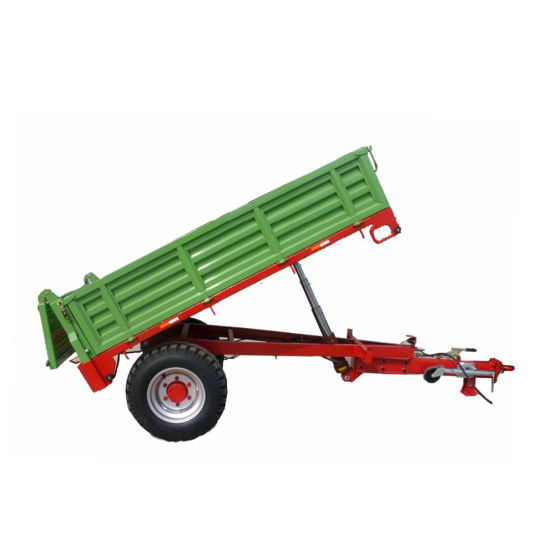

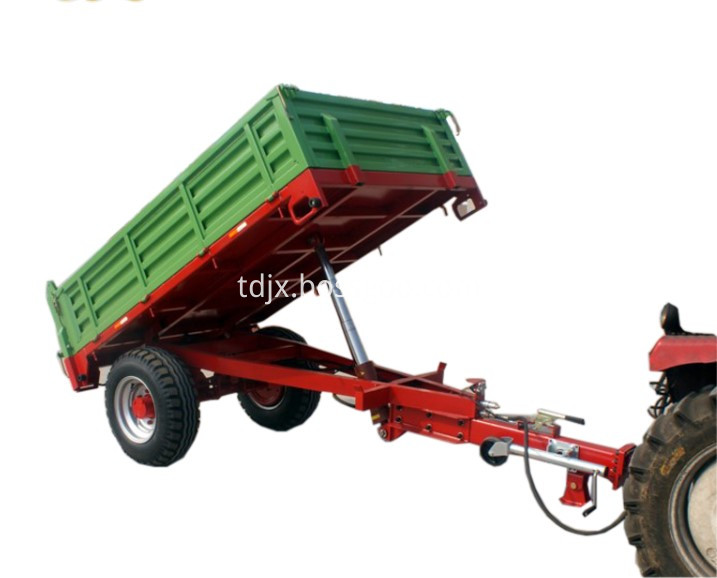

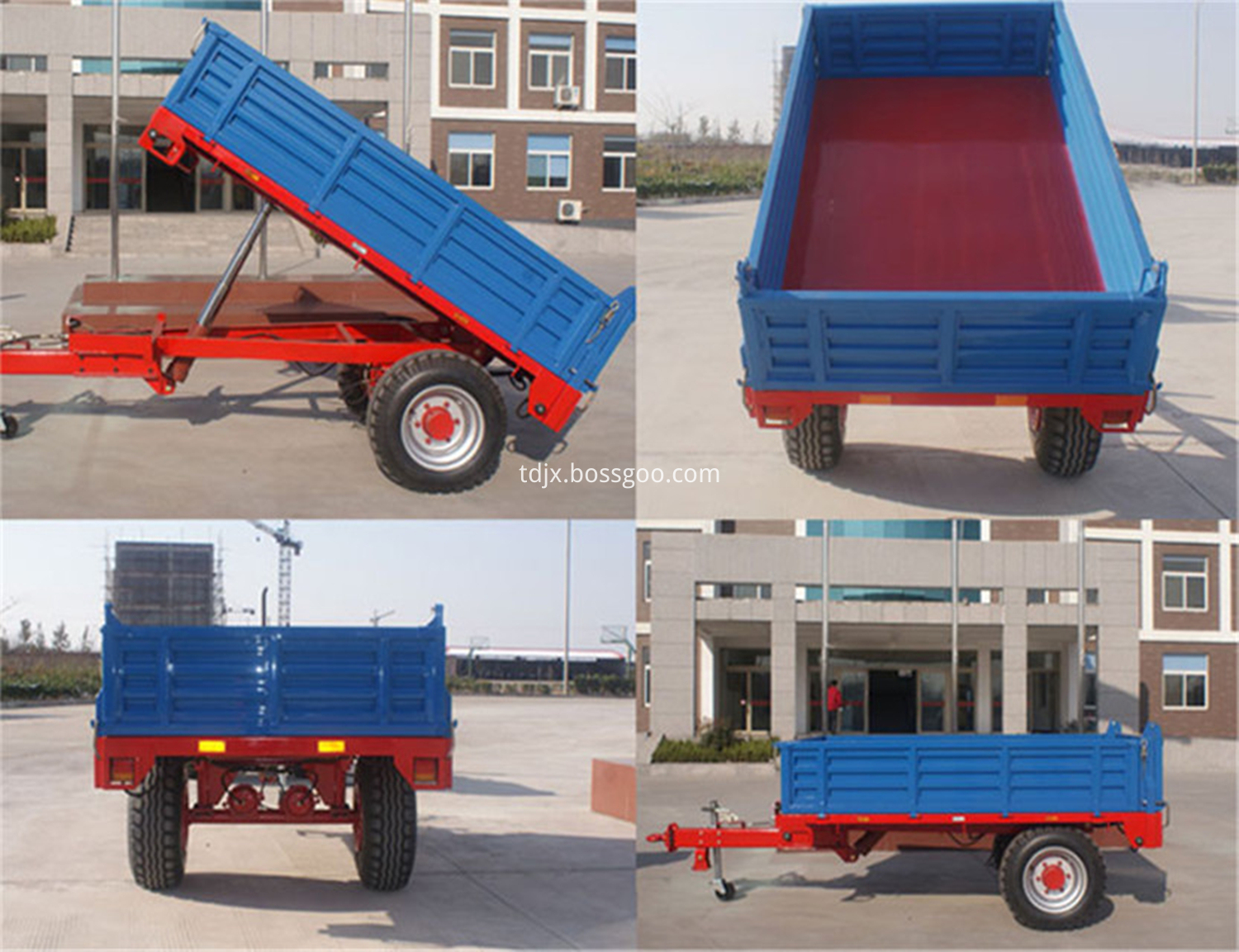

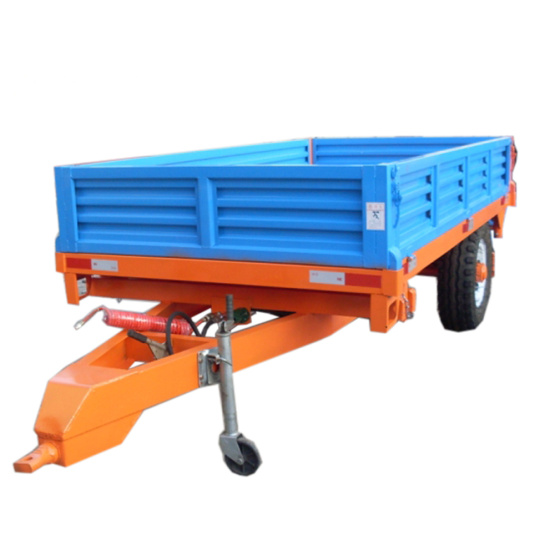

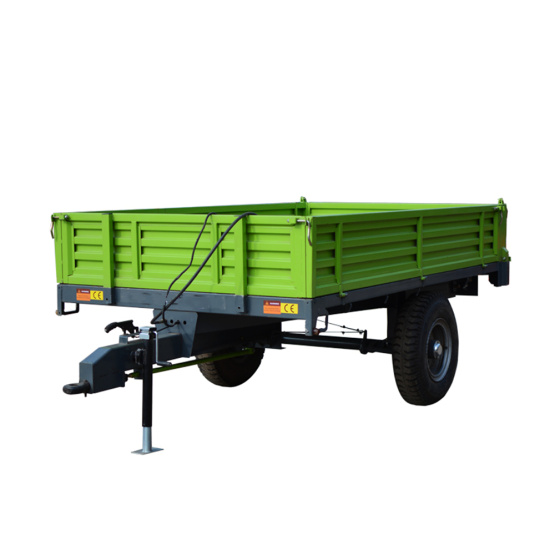

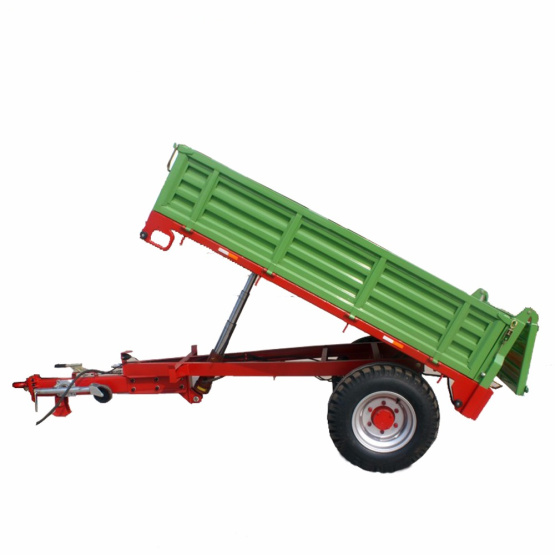

Two wheel Compact tractor tipper trailer:

The 7C series two wheel Compact tractor tipper trailer has various types form 0.5T-8T. The tractor 3 point linkage automatic tipping trailer has reasonable structure; beautiful appearance, economic and durable and also can match various types of tractors, it is divided into many kinds of types : single axle of two wheel trailer, double axles of four wheel trailer, hydraulic dump or no-hydraulic dump. it also can be made according client's requirements, the following parameters table is only for reference.

The farm machinery cargo trailer tractor tipper trailer is used for road and field transportation.It`s convenient to maintain and durable in use. The form of damping is leaf spring, the form of traction is tripod traction. The single axle dump trailer is derusting with large shot blast machine, to change welding stress.

Parameters of two wheel Compact tractor tipper trailer:

1. Model: 7CX-4.0

2. Matched Tractor: 40~60 hp

3. Outside Dimension: 4020×2200×1140

4. Loading size: 3200×2000×550

5. Loading capacity: 4.0 ton

6. Tire size / qty: 185R14C / 2

7. Weight: 1500 kg

8. Brake forms: mechanical, impact or air brake or choose hydraulic pressure dump

Features of two wheel Compact tractor tipper trailer:

1. All standard parts are 8.8 grade and coloured. The bolt for box plate is galvanized and the bottom plate is self-locking nut.

2. Beautiful weld, uniform length and uniform, no welding spatter, leakage, false welding.

3. Trailer parts are uniform in size and interchangeable (such as front and back boxes). Adding B-pin or open pin can prevent the box board from sliding when it opens.

4. Trailer leg height is adjustable and firm.

5. Sandblasting before spraying. Paint adopts two-component polyurethane composition, baking process, high brightness, sun resistance, rain resistance, strong ultraviolet ray resistance.

Applications of two wheel Compact tractor tipper trailer:
