Basic Info

Model No.: 1S-440Z

Application Field: Agriculture

Power Source: Tractor

Traction Type: Hanging

Certification: SGS, ECE, EU, CE

Working Efficiency: High Efficiency

MOQ: 1sets

Application: Agricultural Cultivator

Advantage: Flexible Operation

Feature: Match Tractor

Drive Type: Match Tractor

Color: Customized

Packing: Iron Frame Package

Usage: Loosening Soil

Name: Folding Type Sub-soiling Machine

Additional Info

Packaging: Strong exporting standard packages. Iron frame ( As your requirements )

Productivity: 1000 set/sets per month

Brand: TIANDE

Transportation: Ocean,Land,Air

Place of Origin: China (Mainland)

Supply Ability: 1000 set/sets per month

Certificate: CE/ISO/SGS

Port: Qingdao,Ningbo,Shanghai

Product Description

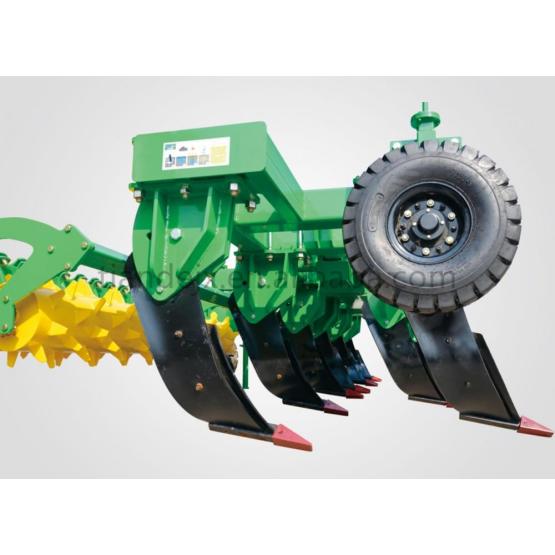

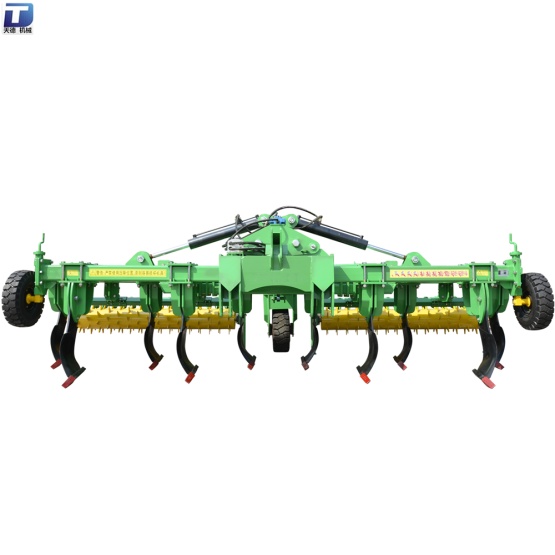

Land preparing machine folding type subsoiler:

The land preparing machine folding type subsoiler deep loose shovel adopts the special curved inverted trapezoidal design, which does not intermingle the soil layer during operation, and does not turn over the soil. After loosening the soil, the surface is smooth, maintaining the integrity of the vegetation. After heavy-duty roller presses to suppress the soil and improve the preservation effect, the soil loss can be minimized, which is more conducive to no-tillage sowing.

The farm deep subsoiler high-gap reinforcement shovel seat and the three-row beam frame structure can be applied to soils with different textures and a large amount of straw covering to avoid clogging and improve the passability of the implement. The single shovel can adjust the line spacing within 20 cm. According to the supporting power, there are also three kinds of deep shovel, small, medium and large, with a working depth of 25-50 cm.

Parameters of folding type deep subsoiler:

1. Model: 1S-440Z

2. Dimension: 2780×4480×1730

3. Matched Tractor: 200~260 hp

4. Working depth: 25~50 cm

5. Working width: 440 cm

6. Shovel space: 55 cm

7. Working efficiency: 3.1~4 hm2/h

8. Linkage: Three-point mounted

Features of folding type deep subsoiler:

1. Multi-cambered surface subsoiling shovel, break plow sole, only loosening soil all around, but not turning over. Working depth can reach to 25~65 cm.

2. Rainy season: enhance soil water storage and waterlodding capability.

3. Dry season: ground flate, vegetation coverage well, upper real lower virtual, improve drought resistance capability.

4. Increase soil permeability, make the root systerm more developed and increase production income.

5. Three bean frame design is easy to adjust line spacing.

6. Widening frame design is to prevent congestion and improve the crossing efficiency.

7. Novel mud scraping plate combination is to ensure the quality of repression.

8. Corrugated suppression roller.

Applications of folding type deep subsoiler:
